Product Description
Raymond mill is one stone grinding mill,mature processing technology , which is to grind non-flammable and non-explosive materials in the fields of building materials, mining, metallurgy and chemical industry with hardness less than 7 in Moh’s scale and humidity less than 6 percent.
Applications:
Mining, building materials, chemicals, metallurgy and other industries.
Product Advantages
1 The equipment’s structure is tight, from crushing to grinding and packing all together forms an independent production system, it has advantages of covering small area, operating simple, saving work force.
2. The final product has high passing screen ratio, which can achieve 99%.
3. Driving system of main frame adopts airtight gearing and pulley, which secures reliable operation.
4. Main parts of the grinding plant are made from cast and high quality steel, which ensures the durability of whole plant.
5. With application of centralized controlling electric control system, Easy to operate and maintain.
Working Principle

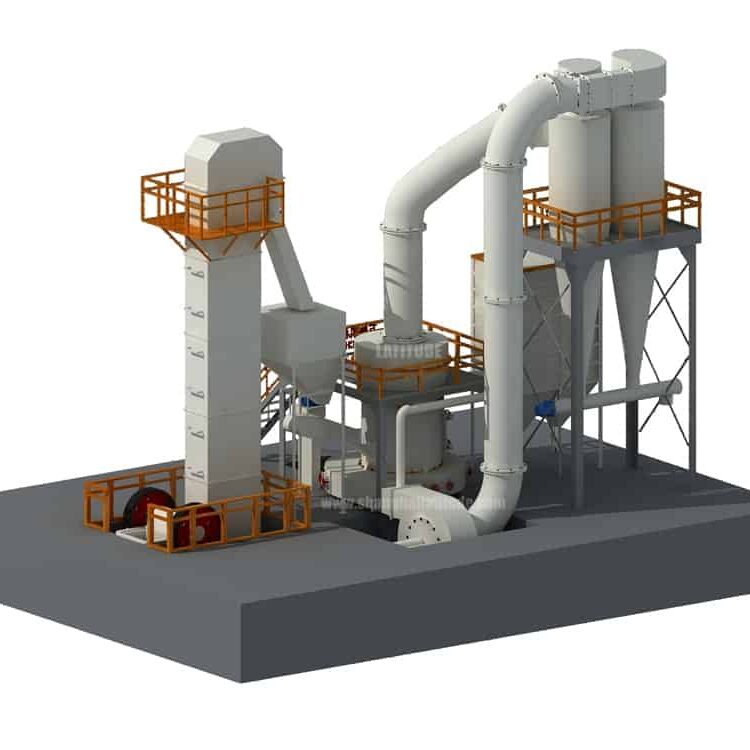

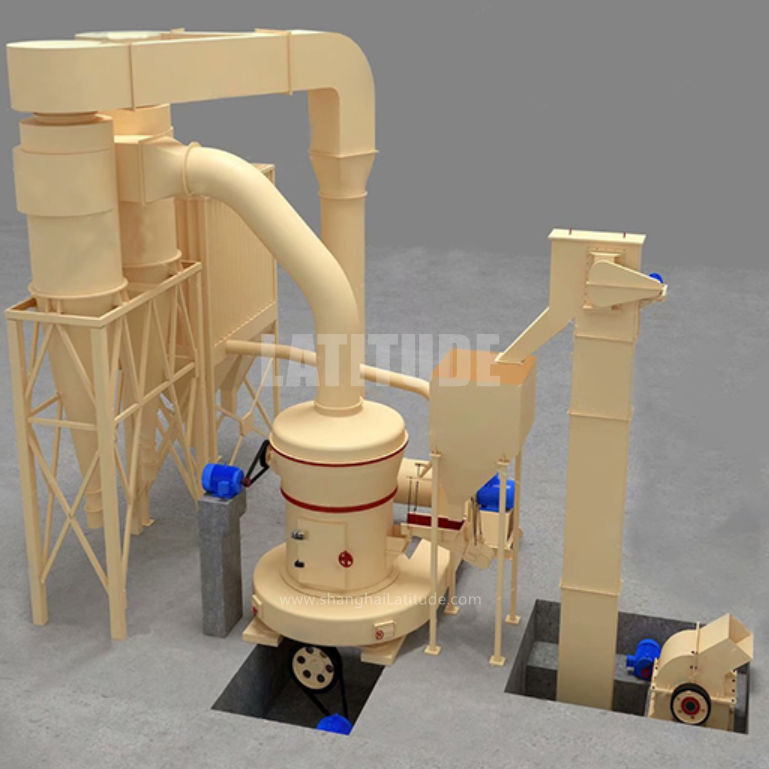

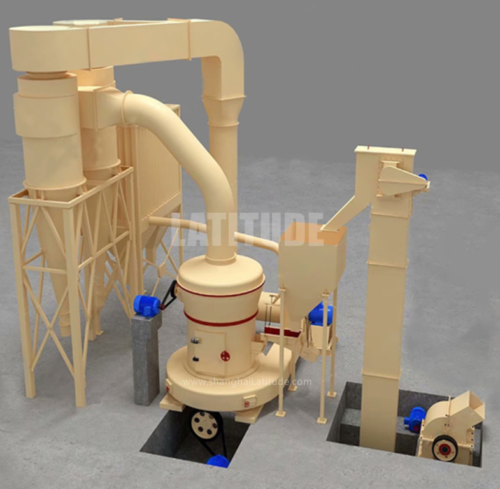

General:Crushing — Grinding — air classifier — Collecting– dust filter
Detailed:Materials first enter jaw crusher or hammer crusher to be crushed to smaller size(less 7cm is better). Then they are lift to storage room by the bucket elevator. Vibrating feeder will feed materials into grinding room evenly.

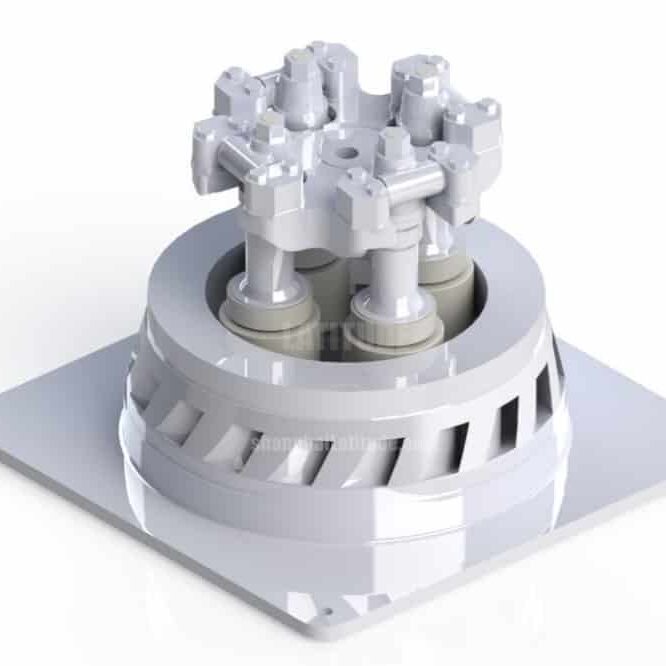

When the materials are put into the grinding room of the main equipment, the grinding roll swings outward and presses closely upon the grinding ring due to the centrifugal force in rotation of the main shaft. The shovel carries materials to the space between the grinding roll and grinding ring, and materials are ground as the grinding roll rolling.
After being ground,the qualified powder is selected by Separator via the cycle wind of the blower and the rough powder will be back to the grinding room for regrinding. The qualified powder is brought into the powder collector by airflow. The powder comes out as end products.
